IP2/ISO Intermodal Shipping Containers

Intermodal Container Type 20’ NC02/2005 IP2 & IP3 Type A

Specifications

Max Gross Weight: 52,800 lbs.
Tare Weight: 5720 lbs.
Payload: 47,080 lbs.
Outside dimensions: 19’10.5” L , 8’W , 8’6”H
Inside dimensions: 19’3” L , 7’7_”W , 7’10_”H
Door opening: 7’8”W 7’5_”H
Cubic capacity: 1104 cubic feet

Equipment Features

• Containers can have shielding added
• Containers are certified for rail, barge, truck, transport and international transport by vessel
• Gasketed watertight design and construction
• Reinforced fork pockets for lifting empty and loaded by fork lift
• Can be handled by crane, container handler from top or side
• Container has 20 each 5 ton rated lashing points to secure cargo

Certifications

• IAEA safety standard IP2, IP3,Type A, ISO 1496/1, CSC, UIC,ADR, IMDG,TIR, Rina, Jir,Test acc IAEO ST-1/Section VII 719-724 and ISO.

Intermodal Container Type 10’ NC04/2005 IP2 & IP3 Type A

Specifications

Max Gross Weight: 26,400 lbs.
Tare Weight: 3,300 lbs.
Payload: 23,100 lbs.
Outside dimensions: 9’ 9 3/4” L , 8’W, 8’6”H
Inside dimensions: 9’3” L , 7’7_”W , 7’10_”H
Door opening: 7’8”W 7’5_”H
Cubic capacity: 552 cubic feet

Equipment Features

• Containers can have shielding added
• Containers are certified for rail, barge, truck, transport and international transport by vessel
• Gasketed watertight design and construction
• Reinforced fork pockets for lifting empty and loaded by fork lift
• Can be handled by crane, container handler from top or side
• Container has 10 each 5 ton rated lashing points to secure cargo

Certifications

• IAEA safety standard IP2, IP3,Type A, ISO 1496/1, CSC, UIC, ADR, IMDG, Rina, Jir,Test acc IAEO ST-1/Section VII 719-724 and ISO.

Intermodal Container Type 20’ HT/OT NC6/2005 IP2 & IP3 Type A

Specifications

Max Gross Weight: 52,800 lbs.
Tare Weight: 6710 lbs.
Payload: 45991 lbs.
Outside dimensions: 19’10.5” L , 8’W, 8’6”H
Inside dimensions: 19’3” L , 7’7_”W, 7’10_”H
Door opening: 7’8”W, 7’5_”H
Cubic capacity: 1104 cubic feet

Equipment Features

• Containers can have shielding added
• Containers are certified for rail, barge, truck, transport and international transport by vessel
• Gasketed watertight design and construction
• Reinforced fork pockets for lifting empty and loaded by fork lift
• Can be handled by crane, container handler from top or side
• Container has 20 each 5 ton rated lashing points to secure cargo
• Lift off hard top with easy locking gear
• top lid opening same as inside dimensions
• top and end loading capability

Certifications

• IAEA safety standard IP2, IP3,Type A, ISO 1496/1, CSC, UIC, ADR, IMDG,TIR, Rina, Jir, Test acc IAEO ST-1/Section VII 719-724 and ISO.

Intermodal Container Type 10’ OHT NC08/2005 IP2 & IP3 Type A

Specifications

Max Gross Weight: 26400 lbs.
Tare Weight: 3740 lbs.
Payload: 22,660 lbs.
Outside dimensions: 9’ 9 3/4” L , 8’W, 8’6”H
Inside dimensions: 9’3” L 7’7_”W, 7’10_”H
Door opening: 7’8”W 7’5_”H
Cubic capacity: 552 cubic feet

Equipment Features

• Containers can have shielding added
• Containers are certified for rail, barge, truck, transport and international transport by vessel
• Gasketed watertight design and construction
• Reinforced fork pockets for lifting empty and loaded by fork lift
• Can be handled by crane, container handler from top or side
• Container has 10 each 5 ton rated lashing points to secure cargo
• Lift off hard top with easy to use locking gear
• Top lid opening same as inside dimensions
• Top and end loading capability

Certifications

• IAEA safety standard IP2, IP3,Type A, ISO 1496/1, CSC, UIC,ADR, IMDG,TIR, Rina, Jir,Test acc IAEO ST-1/Section VII 719-724 and ISO.

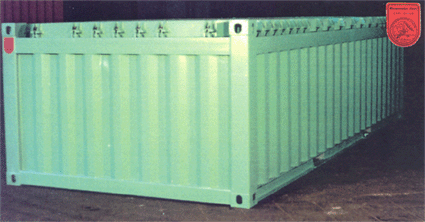

GSP17

20′ Long X 8′ Wide X 5′ High

GSP20

20′ Long X 8′ Wide X 4’8″High

Type A Container


Roof with handling system
for forklift/crane



Cargo securing dividers

20′ IP2 Type A Container Newly Manufactured
